AC CHARGING CABLE ASSEMBLY
CERTIFICATE
AC CHARGING CABLE ASSEMBLY
PDF Downloads
SPECIFICATIONS
Connector typeType 2
EV PlugIEC 62196 type 2 male /  female plug
Rated current16A / 20A / 32A
Rated voltage250V (Single Phase) /
480V ( Three Phases) AC
Fireproof grade of rubber shellUL94V-0
Plastic shellThermoplastic plastic
Working environment temperature-40°C to +50°C
Frequency50/60Hz
Cable Jacket MaterialTPU
TerminalCopper alloy, silver plating
Ingress ProtectionIP67
CertificationCE/ TUV
Certification StandardIEC 62196-1/ IEC 62196-2

MECHANICAL PROPERTIES
Insertion/withdrawal cycles > 10000
Insertion force < 100 N
Withdrawal force < 100 N


PRODUCT DESCRIPTION

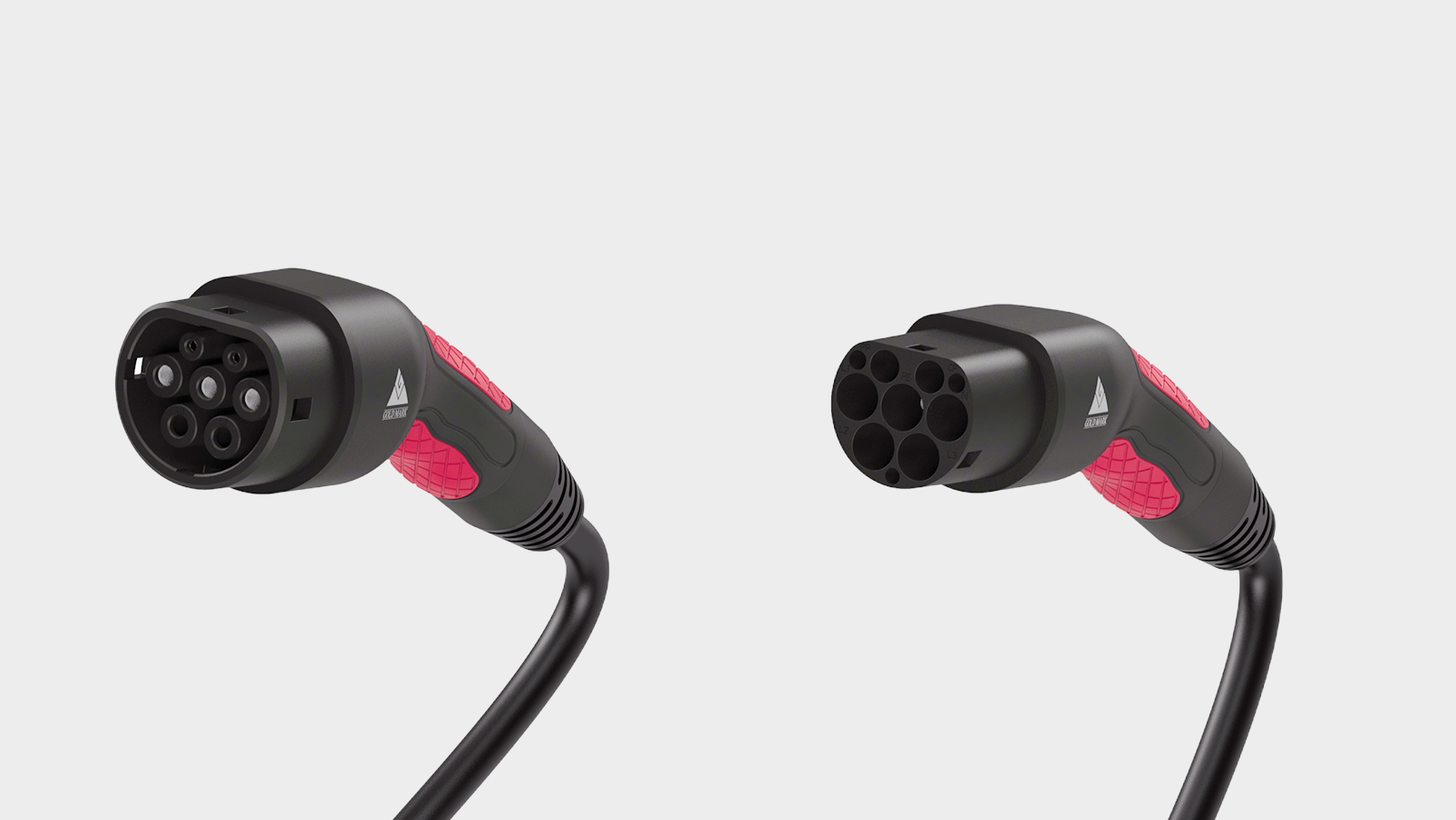

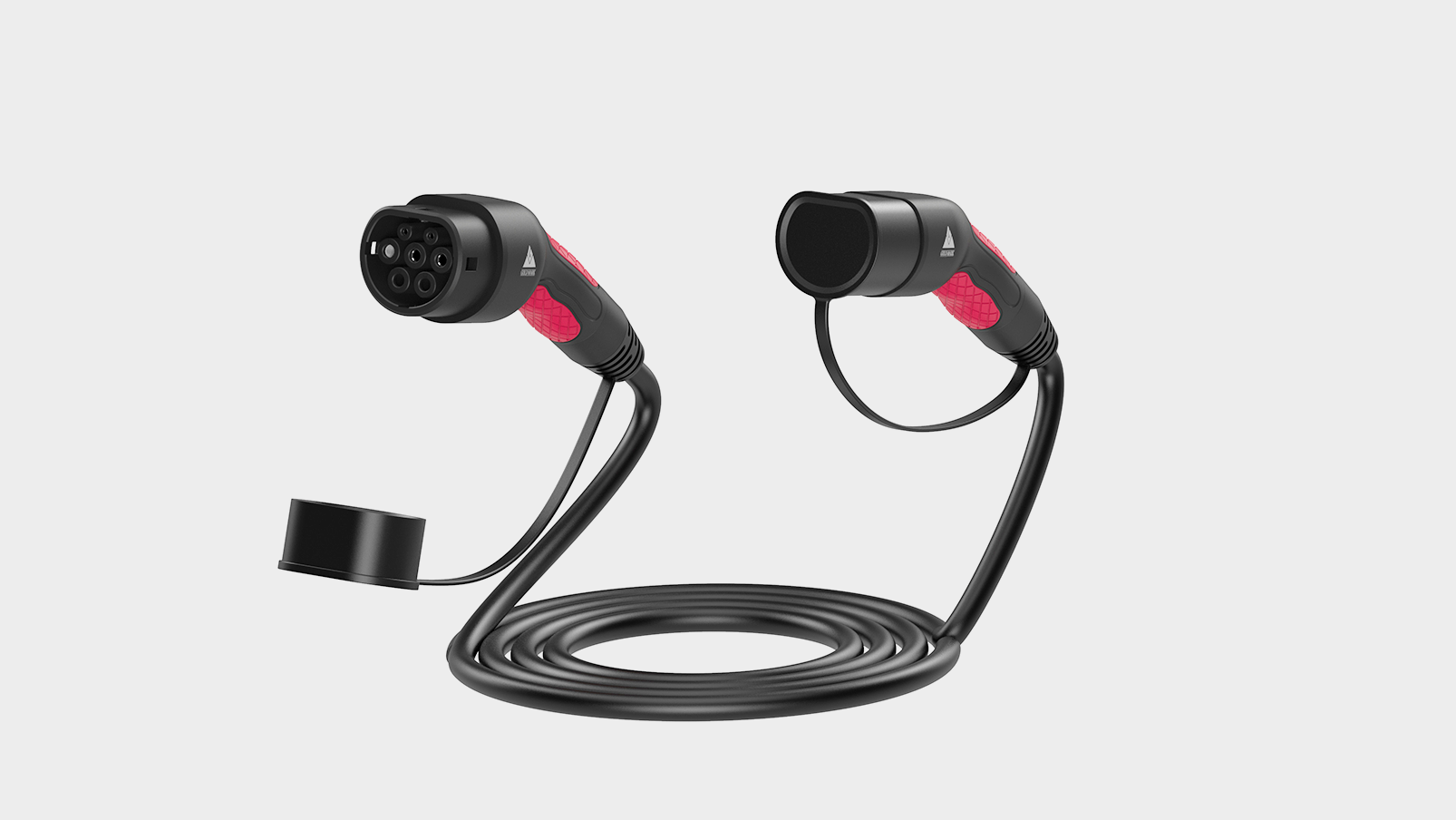

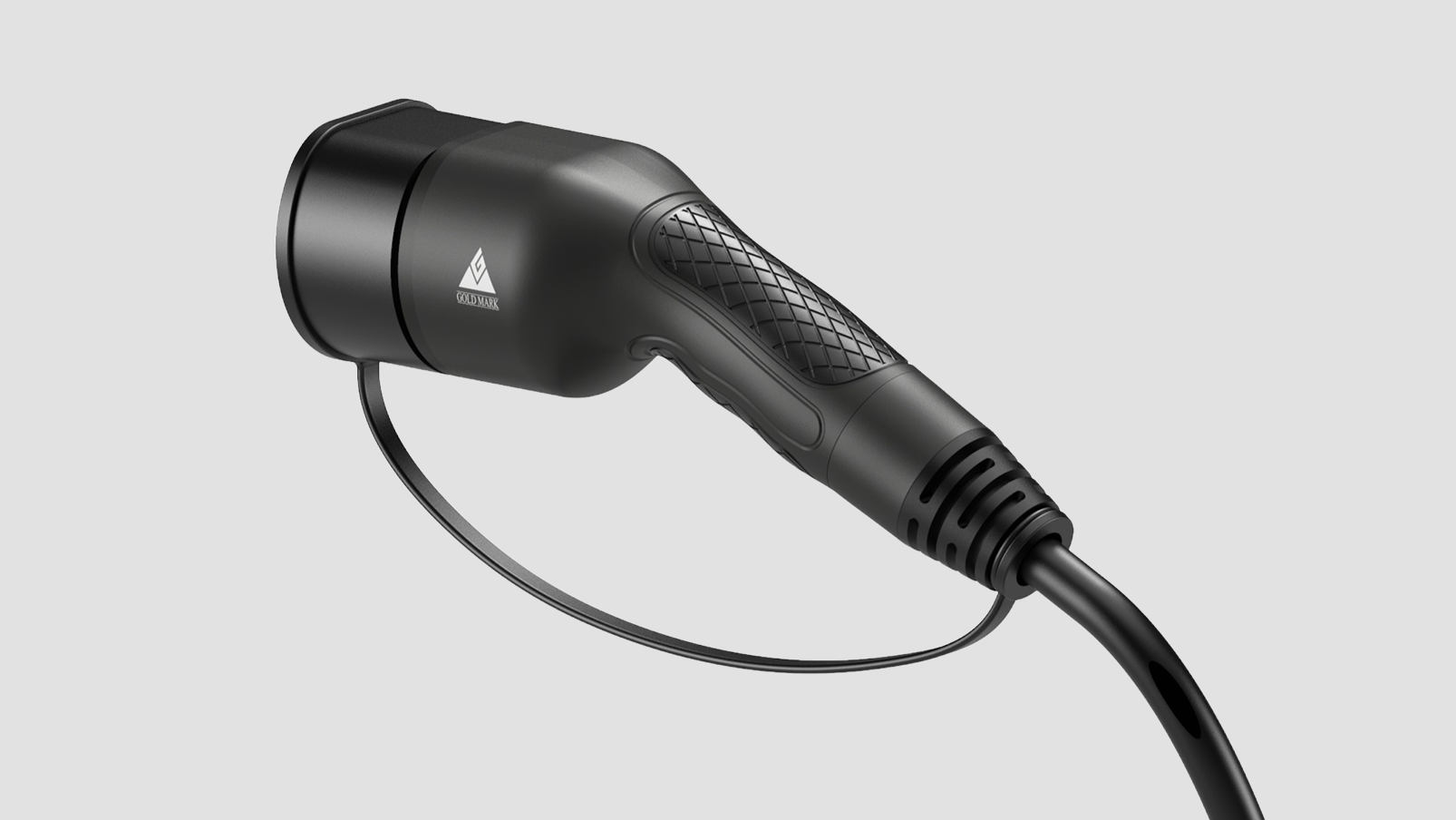

Our AC charging cable, with vehicle connector and infrastructure charging plug, for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets, with protective cap, Type 2, IEC 62196-2, 32 A / 480 V (AC), cable: 5/7/10 m, black, straight.

APPLICATION

Usage for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets. It is also compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE)
